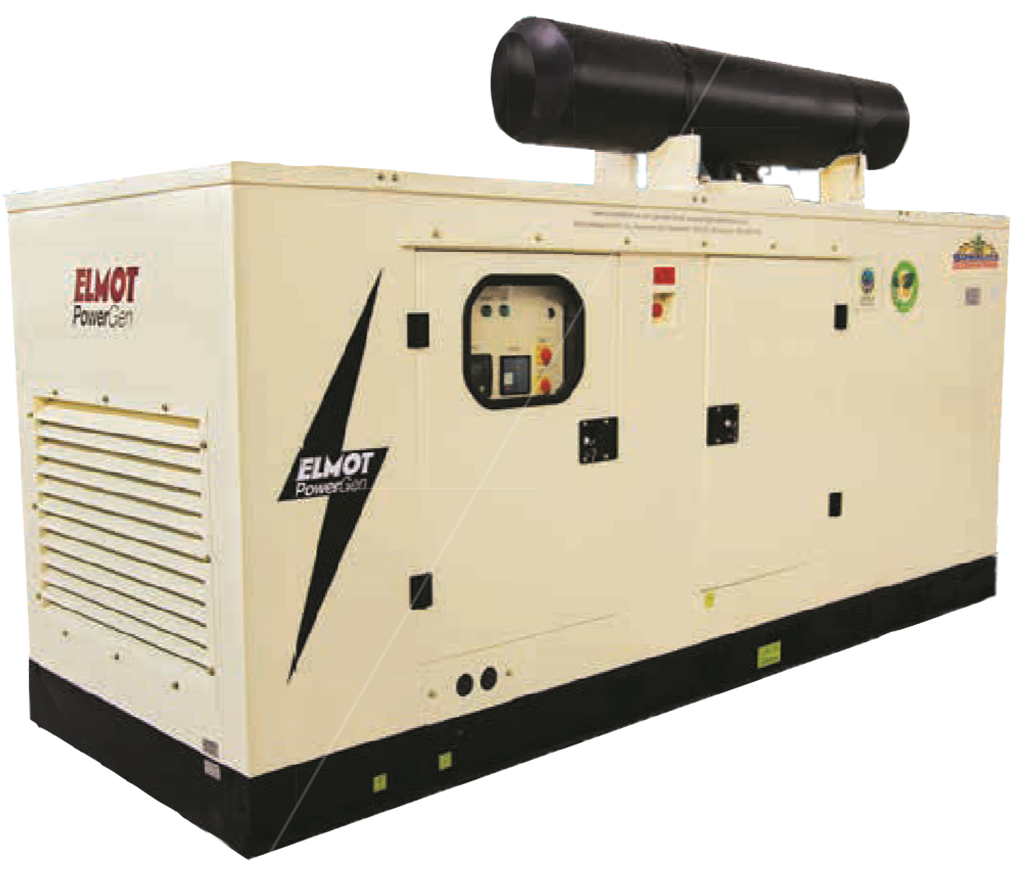

15 kVA Elmot DG Sets
Power Inside and Out
Engine
- Advanced technology and best metallurgy
- Most fuel efficient engine in its class
- Longer duration oil change period
- Lubrication oil cooler and bypass filter in-built
- Lower maintenance cost
- Piston cooling nozzle
- Extremely LOW vibration
- In line fuel pump
- Starter motor with thermal cut-off
- Easy Serviceability and spares availability
- No running-in period: First Change is after 500 hours / 6 months
Alternators
- Highest efficiency in its class
- Higher overload sustainability
- Highest output to weight ratio
- Voltage Regulation: ±1% (standard), ±0.5% (optional)
- Faster recovery response
Acoustic Enclosures
- Aesthetically designed
- Convenient lifting arrangement
- Suitable for outdoor and harsh weather condition installations
- Easy access to accessories with secure serviceability
- Integral Control Panel
- Integral fuel tank with 3-way fuel indication
- Powder coated with nine tank pre-treatment for durability
- Silencer with bird protection cover and tail pipe
15 kVA DG SET
General Specifications
| DG Set model NO | ELM-15S |
|---|---|
| Electrical Rating | 15KVA |
| Power Factor (PF) | 0.8 (lag) |
| Engine Model | 2105GL |
| Engine Rating (KW) | 12 |
| Cooling type | Water Cooled |
| Cylinders | 2 |
| Gross Power (BHP) | 24.3 |
| Bore and stroke (mm) | 105 x 118 |
| Displacement (Litres) | 2.04 |
| Compression Ratio | 16.4:1 |
| Lube Oil Sump capacity (Litres) | 6.5 |
| Lube Oil Consumtion (liters/hours) | 0.003 |
| Coolant Capacity (Litres) | 9 |
| Services Invervel (Hours/Months) | 500/6 |
| Governing type | Mechnical (A1) |
| Air Cleaner type | Dry |
| Method of starting - Electrical | 12V DC |
| Minimum capacity of Amp.hr starting BATTERY | 75 |
| Alternator Make | Stamford/ Leory Somer/ Mecc Alte (Depends on avaikability) |
| Alternator type | Brushless, Single bearing, Self-excited with solid state AVR |
| Frequency (Hz) | 50 |
| Insulation Class | F/H |
| Control panel (Mode) | standard control panel / AMF optional |
| Genset dimensions (LXBXH) (mm) | 2000x1100x1250 |
| Fuel Tank Capacity (Litres) | 63 |
Notes:
- Conditions Apply
- Electronic governor is optional
- Other makes of alternator can be provided on request
- Indicative. Please refer to engineering drawings for exact details
- 140 kVA/112 eKW rating is available on request
- Power ratings are as per standard reference conditions, in accordance with BS 5514/ISO 82.546/ISO8528 and IS 10002/IS 82.546
Options & Services:
- Transportation and transit insurance
- Unloading and shifting of Genset at site
- Civil foundation at site
- Power and control cabling outside acoustic enclosure
- Earthing of equipment (Genset and Panel) at site
- Exhaust pipe extension
- Any kind of special statutory approval
| Standard Scope Of Supply: |
|---|
| Lighting inside acoustic enclosure | Included |
| Fuel tank & fuel piping | Inbuilt (with lock and key arrangement) |
| First fill of lube Oil & coolant | Included |
| Power Cable | Included within acoustic enclosure (between alternator & Genset panel) |
| Silencer with tail pipe | Included |
| Fuel level gauge & sensor | Included |
| Emergency Stop button (E-STOP) | Included |
